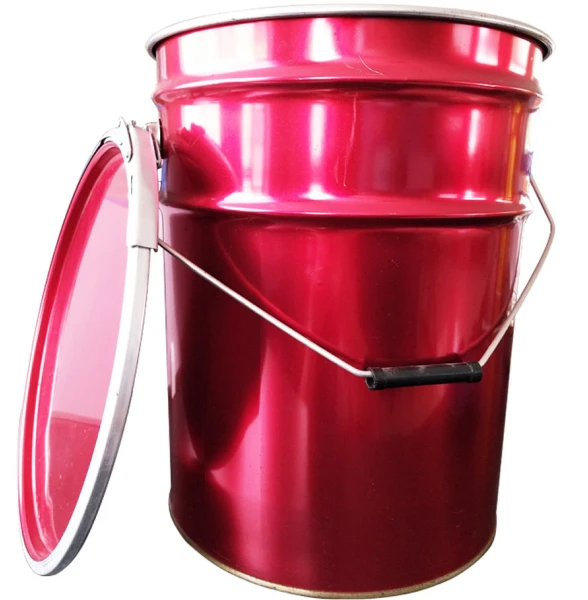

5 Gallon Open-Head Steel Pails With Lid & Lever Locking Ring

5 Gallon Open-Head Steel Pail, fitted with lid and lever locking ring. Carbon steel material, tool-free opening & closing, leak-proof seal. UN 1A2 approved for dangerous goods. Available with anti-rust primer or chemical-resistant lining. For industrial packaging, storage and transportation.

Key Features

Design: Open-head design, meaning the entire top lid can be removed for easy filling and cleaning.

Interior Linings: Available in unlined/rust-inhibitor for oils and solvents, or with an epoxy/phenolic lining for water-based products or chemical resistance.

UN Ratings: Many of these pails are UN-rated (e.g., UN1A2/Y2.0) for safely transporting hazardous solids or liquids.

Material and Construction: The drum body and lid are typically made of 0.32mm to 0.45mm thick tinplate or steel, ensuring durability. The lid features a locking ring that engages with grooves in the drum body for a tight seal, preventing leaks.

Capacity: Commonly 5-gallon, but ranges from 1 to 7 gallons.

Material: 24-gauge or 28-gauge steel, ensuring durability in high-temperature applications.

Lid and Handle: In addition to the locking ring lid, other sealing lid types are available, such as flower lids and lever lids. The handle is typically made of metal with a plastic sleeve for easy grip and heat insulation.

Linings: Rust inhibitor primer is standard, but epoxy or phenolic linings are used for better, long-term chemical resistance.

Safety & Design: Features include drop bails for easy handling, reinforced bottoms for stability, and specialized lids (lever lock or crimped).

Specialty Use: Hot tar buckets often feature a "non-stick" surface and designed for easy pouring.



Common Applications

Roofing: Handling hot tar, asphalt, and mastic.

Construction & Industrial: Storing and transporting adhesives, coatings, and hazardous chemicals.

Materials Testing: Used for sampling hot-mix asphalt.

Gauge Thickness:27-30 GaugeGallon Range: 4-6.5 Gallon

1.Lever locking ring lid

.Removable heavy gauge steel lid and lever locking ring combination for both UN rated or non-UN steel pail.re-sealable

2 Lid seal

For UN rated container rubber and EPDM gaskets have good performance of air tightness and anti-solvent property,they are exclusived used for UN containers.

3.Bottom sealing

.Five layers sealing for non-UN rated steel pail

.Seven layers sealing for UN rated steel pail

4 Handle

Steel handle with white or black plastic becket pass the test of handle strength test hanging 55kg in air for 48 hours.

1.Factory test room for drop test,stacking test,hydraulic pressure test,leakproofness,bale handle strength.

2.Different moulds for tin cans and adhesive cans.So here we can supply one-stop steel containers purchasing service.

3.Have plastic pail and other plastic moulds for pail accessories like different pail covers.We also can make different moulds for not only plastic containers but also other PP,PE,ABS products.

Feihong Steel Packaging, a leading manufacturer with over 25 years of experience in the packaging container industry, deeply understands the stringent safety and reliability requirements for packaging hazardous materials such as chemicals and petroleum products. Leveraging our extensive experience serving clients in industries including paints, adhesives, solvents, asphalt, chemicals, and engine oils, we are proud to launch our UN-certified lever-lock closed-top steel drum. This product combines our years of technological expertise with a deep understanding of international standards, making it the ideal packaging solution for your high-end, hazardous, or high-value liquid products.
